service utilities for offset and screen printing

tefka* service utilities for offset and screen printing

tefka* printing table & printing plates cover

tefka* printing table & printing plates covers and matching tefka* nest-pads protects sustainable the tables / vacuum plates. The tables wear out by colours, cleaner and mechanics e.g. at offset printing in short or long-term. Our table covers are easy to change and eay to clean, and thus prevent expensive table-/plate- changes early. The tefka* nest-pad aligns the heightening, which result because of the tefka* table covers K/15 F, about approx. 0,20 mm. The change of the nest-pads are also facilitates, because the nest-pad can be removed nearly residue-free from the surface.
The advantages
- Easy attachment and removal of our pads, thanks to special adhesive
- Reduced need of solvents and detergents
- Reduces environmental pollution and workloads on staff
- No curing of the pads, thanks to heat radiation
- Reduced machine downtime / production downtimes

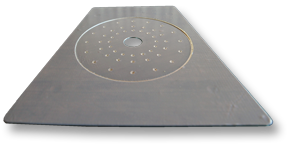

T/15F Blanket ready-made
Stärke / thickness: ca. 0,15 mm

P/N : 3009xxxxx Placeholder image

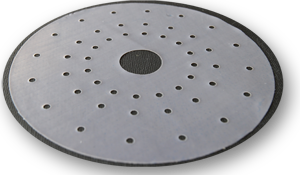

T/15F release 500
Stärke / thickness: ca. 0,15 mm

P/N : 300950000 Placeholder image

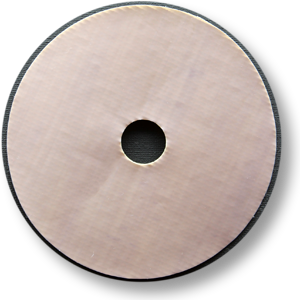

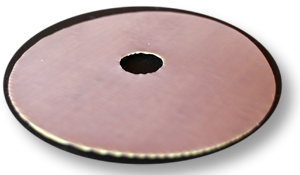

T/15F release 505
Stärke / thickness: ca. 0,15 mm

P/N : 300950500 Placeholder image

T/15F Blanket cut
Stärke / thickness: ca. 0,15 mm

P/N : 3009xxxxx

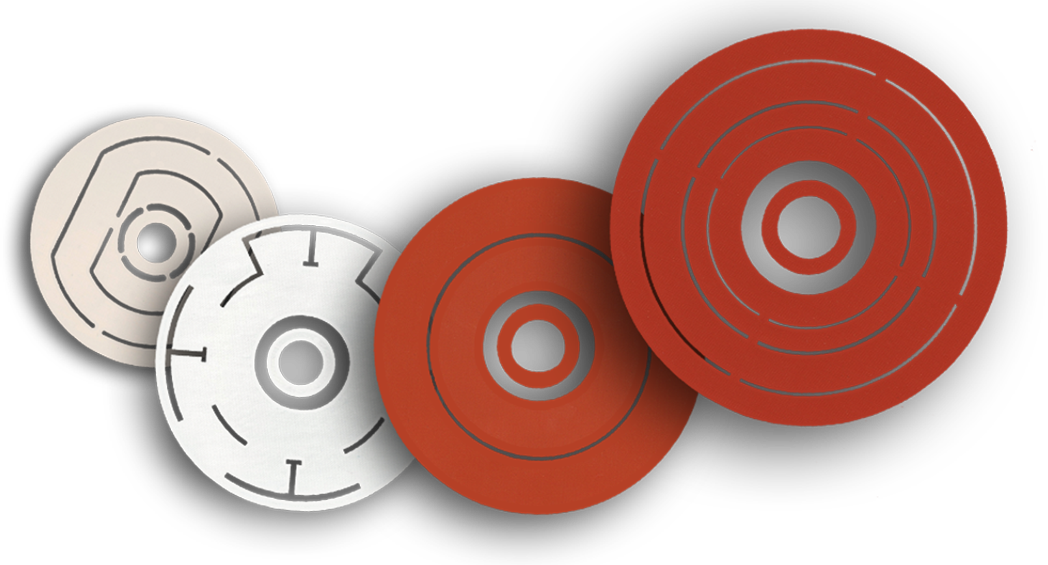

tefka* CD/DVD screenprint-pads / nestpads

Our print pads are inherently stable, temperature- and UV/IR- resistant. Perfect for printing and drying. at e.g. rotating printing, tefka* print-pads can provided with a vacuum ring as well as with a full perforations, to keep the CD/DVD firmly in place. Applications like switching the tefka* print-pads are done with effortless ease because of a single-sided applied special adhesive, which can be removed residue-free from the vacuum-plate and then, without subsequent pre-cleaning, get renewed. The special surface provides extremly precise printing especially at screen-printing, without curing through drying ! base material + surface + embossing + perforation + strength are individual adjusted to the respectiveprinting machines. simultaneously the CDs/DVDs are optimal protected of possible light damage like scratches etc. because our print-pads don't cure. CD/DVD/BluRay Screenprint and Offset consumables / spare parts Silicone Pads for Hanky Screen Printing System and Hanky Offset Printing Maschine Silicon Vacuum Pad for Guann Yinn Offset, Blanket-Guann Yinn Dubuit Vacuum Pads Kammann screenprint / offset Disk 1140, K15 40, K15 40-High Speed
The advantages
- Easy attachment and removal of our pads, thanks to special adhesive
- Reduced need of solvents and detergents
- Reduces environmental pollution and workloads on staff
- No curing of the pads, thanks to heat radiation
- Reduced machine downtime / production downtimes

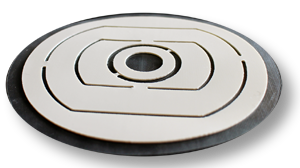

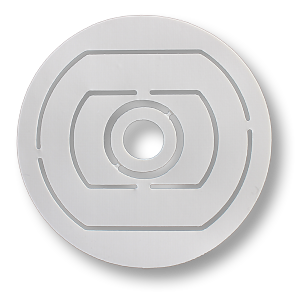

S/99 release 118 mod. cw
(webs 45° - CD/DVD/Blu-Ray)
Stärke / thickness: ca. 1 mm

P/N : 300411801
S99-PREM-ST45-ALLIN Placeholder image

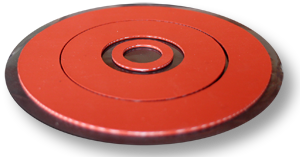

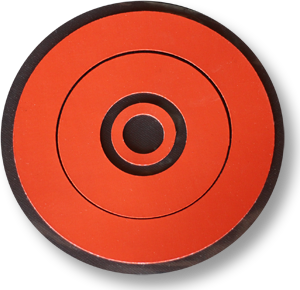

T/16 release 2150
Stärke / thickness: ca. 1,75 mm

P/N : 300321500
KSSC16-2150 (16R-2150-RST3) Placeholder image

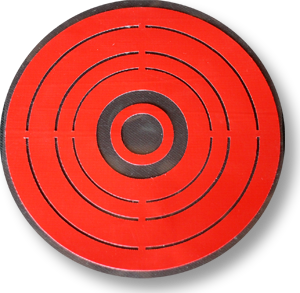

S/13 F release 116 w
Stärke / thickness: ca. 0,32 mm

P/N : 300211600
S13F-DVD-ST (13FR-ST-RST2) Placeholder image

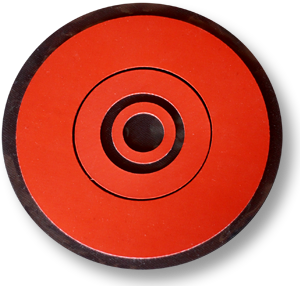

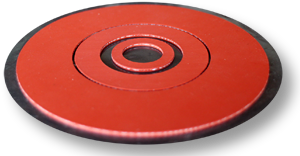

T/16 release 2170
Stärke / thickness: ca. 1,75 mm

P/N : 300321700
KSSC16-2170 (16R-2170-RST4) Placeholder image

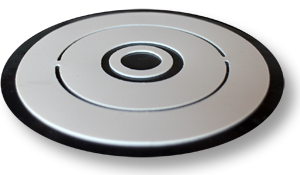

S/99 release 2150 mod. w
Stärke / thickness: ca. 1,0 mm

P/N : 300421501 Placeholder image

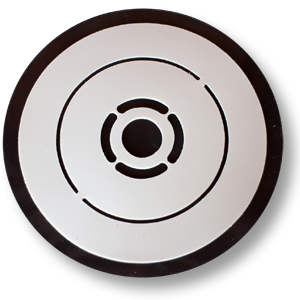

S/99 release 2150 mod. cw
Stärke / thickness: ca. 1,0 mm

P/N : 300421502 Placeholder image

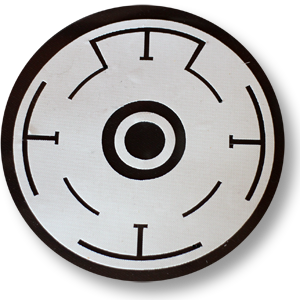

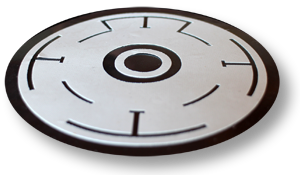

S/20 release 117 special-cut
Stärke / thickness: ca. 0,33 mm

P/N : 300111700 Placeholder image

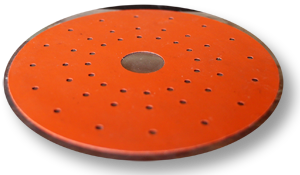

S/50 release 501
Stärke / thickness: ca. 0,5 mm

P/N : 300750100 Placeholder image

S/22 release 502
Stärke / thickness: ca. 0,33 mm

P/N : 300550200 Placeholder image

S/99 release 509 mod.
(Guann Yinn modified vacuum)
Stärke / thickness: ca. 1 mm

P/N : 300450901 Placeholder image

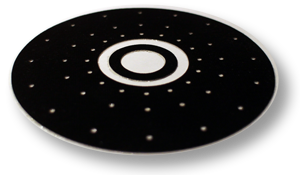

S/99 release 509
(Guann Yinn replaced)
Stärke / thickness: ca. 0,33 mm

P/N : 300850200 Placeholder image

S/50B release 502
(48hole)
Stärke / thickness: ca. 0,33 mm

P/N : 300550200 Placeholder image

S/99 release 601
(Teca-Print replaced)
Stärke / thickness: ca. 1 mm

P/N : 300460100 Placeholder image

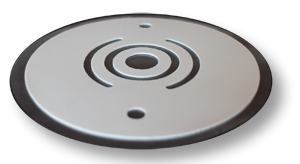

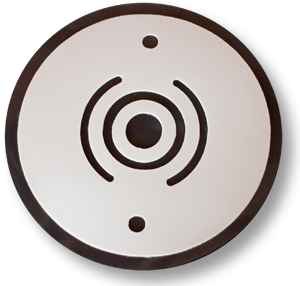

S/99 release 601 mod.
(Teca-Print modified vacuum)
Stärke / thickness: ca. 1 mm

P/N : 300460101 Placeholder image

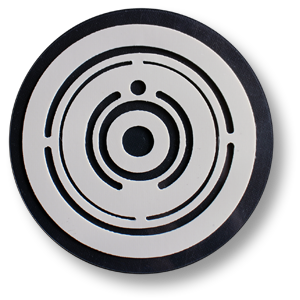

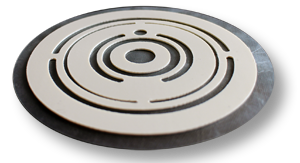

S/99 release 609 mod.
(Hanky Screen mod. vacuum)
Stärke / thickness: ca. 1 mm

P/N : 300460901 Placeholder image

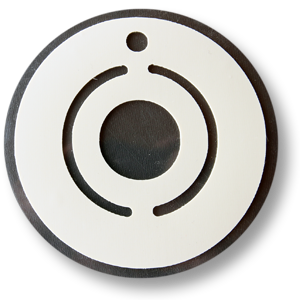

S/99 release 704 mod.
(Nest-Pad Dubuit mod. Vacuum)
Stärke / thickness: ca. 1 mm

P/N : 300470401 Placeholder image

S/22 release 116 w
Stärke / thickness: ca. 0,33 mm

P/N : 300111600 Placeholder image

S/22 release 072
Stärke / thickness: ca. 0,33 mm

P/N : 300107200 Placeholder image

S/20 release 119
Stärke / thickness: ca. 0,33 mm

P/N : 300111900 Placeholder image

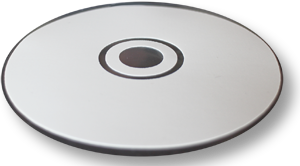

S/22 release 115
Stärke / thickness: ca. 0,33 mm

P/N : 300511500
KS22W-RST1 (22W-RST1) Placeholder image

tefka* CD/DVD vacuum sealing rings (vacuum sealing lips)

tefka* vacuum sealing lips are used with Kammann CD/DVD offset-printmachines e.g. with the Kammann K15i, K15 40, 41540.HS. The vacuum sealing lips have two-pieces, an inner and an outer ring, they make the suction and positioning of the workpiece through the discs during the rotation possible.

Vacuum sealing lip blue
Inside , approx. 1,96 mm Placeholder image

Vacuum sealing lip green
outside, approx. 2,5 mm Placeholder image

Usage: endless-vacuum with Kammann CD/DVD printmachines (vacuum rotary table).

The final assembly needs to be done by the Customer
inner ring 1 connection (2 Halbverbindungen)
outer ring 2 connection (4 Halbverbindungen)
